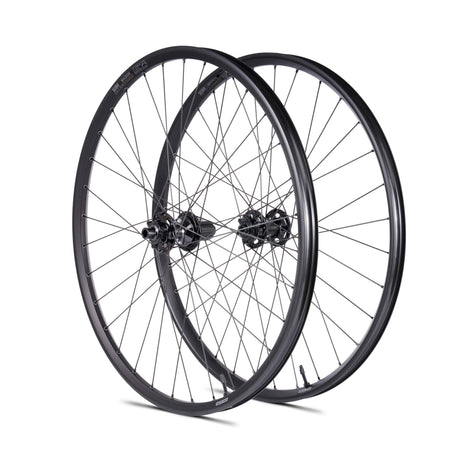

MAGNON Wheelset

The MAGNON is our heavy duty touring wheelset, designed for managing a total weight capacity of 150 kg. All Magnon's components are specifically designed to withstand heavy of loads over long periods of time. Beefy hub shells, triple butted spokes with a thicker 2.3 mm elbow, and 25 mm wide tubeless-ready rims inspired by downhill-counterparts, make this a perfect upgrade wheelset for taller and heavier riders seeking a more suited and sufficiently stiff wheelset. At the same time, the Magnon wheelset is a reliable choice for world-exploring touring bikes and the rugged nature associated with adventuring in remote places. With all its added robustness, less road-side repairs can be expected from broken spokes or rim failure.

ETRTO SIZE
25-584 / 25-622

RIMS

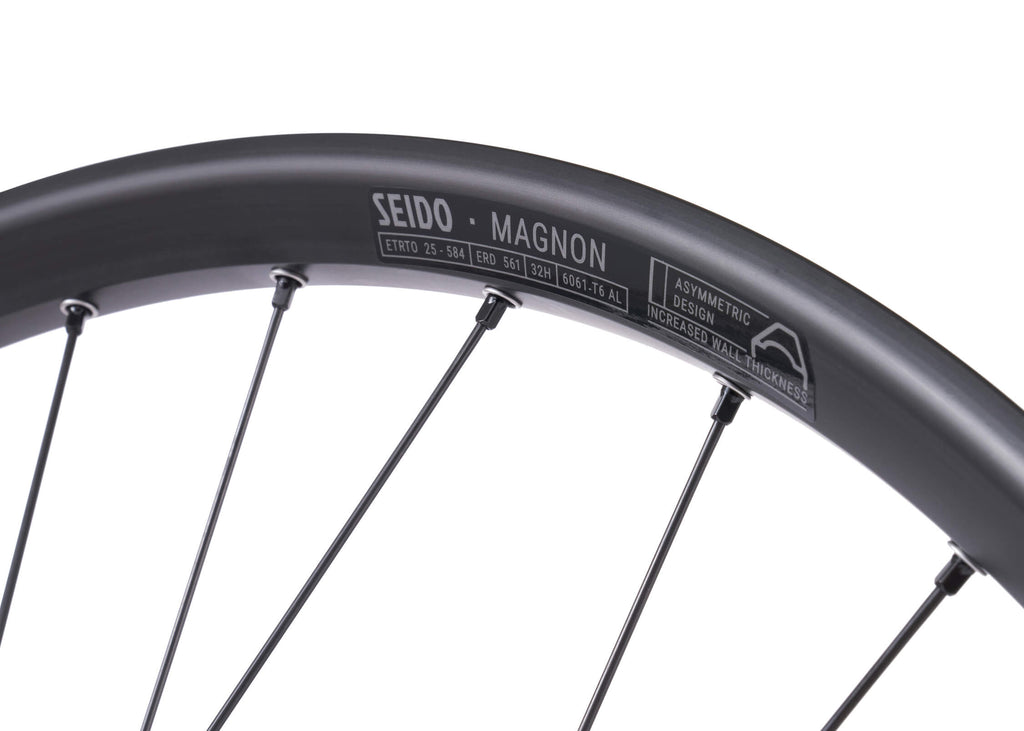

25 mm int. width 6061-T6 aluminum, asymmetric rim design, tubeless ready, single eyelets, increased wall thickness, sleeved joint, hooked clincher

RIM HEIGHT
20 mm

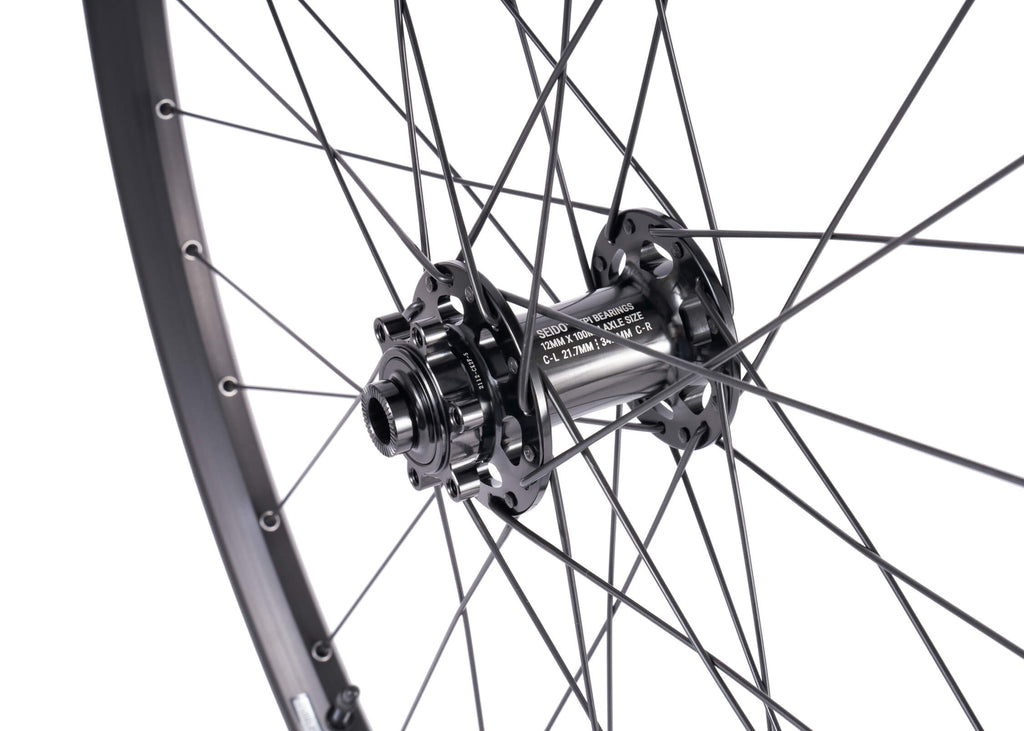

FRONT HUB
12 x 100 mm, TPI bearings, ISO 6 bolt

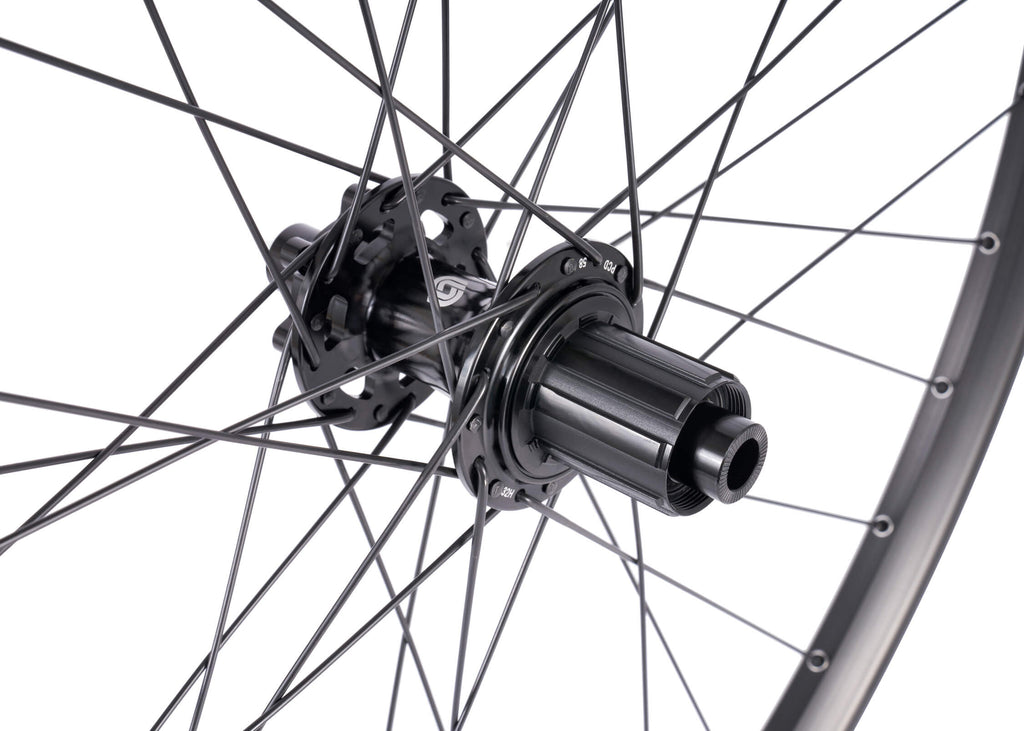

REAR HUB
12 x 142 mm, TPI bearings, 4 pawls, ISO 6 bolt

SPOKES
Pillar PTB380 triple butted spokes, 3x lacing F/R

SPOKE COUNT (FRONT / REAR)
32H / 32H

NIPPLES
Pillar DSN 14G

FREEHUB BODY
HG (XDR, Microspline separate available)
Add to shopping cart with wheelset for 50% upgrade discount

BRAKE TYPE
Disc only

RECOMMENDED TIRE WIDTH
40 - 60 mm

EXTRA INFO
Heavy duty touring wheelset for heavy riders or luggage. All parts specifically designed to withstand high loads.

INCLUDED
Pre-installed tubeless tape, aluminum tubeless valves

WEIGHT
1965 g (584, w/ tubeless tape and HG freehub body)
2059 g (622, w/ tubeless tape and HG freehub body)

WHEELBUILD INFO

NIPPLE SEAT DIAMETER
561 mm (584) / 599 mm (622)
Nipple seat diameter is the ERD excluding the nipple height inside the rim. For standard nipples add 3 mm to get ERD.

SPOKE HOLE OFFSET
3.5 mm

SPOKE LENGTH FRONT WHEEL
273 mm, 274 mm (584) / 293 mm, 294 mm (622)

SPOKE LENGTH REAR WHEEL
273 mm, 274 mm (584) / 293 mm, 294 mm (622)

FRONT HUB PCD
58 mm

REAR HUB PCD
58 mm

FRONT HUB FLANGE DISTANCE/ OFFSET
56.5 mm center to center / 6.6 mm

REAR HUB FLANGE DISTANCE/ OFFSET
51 mm center to center / 8.8 mm

FRONT C-L / C-R
21.7 mm / 34.9 mm

REAR C-L / C-R
34.3 mm / 16.7 mm

MAX SPOKE TENSION RIM
110 - 130 kgf

FREEHUB BODY HG
SD-CB-001

FREEHUB BODY XDR
SD-CB-004

FREEHUB BODY MICROSPLINE
SD-CB-007
